E-mobility » Electro scooters » NX4-CORE e-scooter
BE COOL

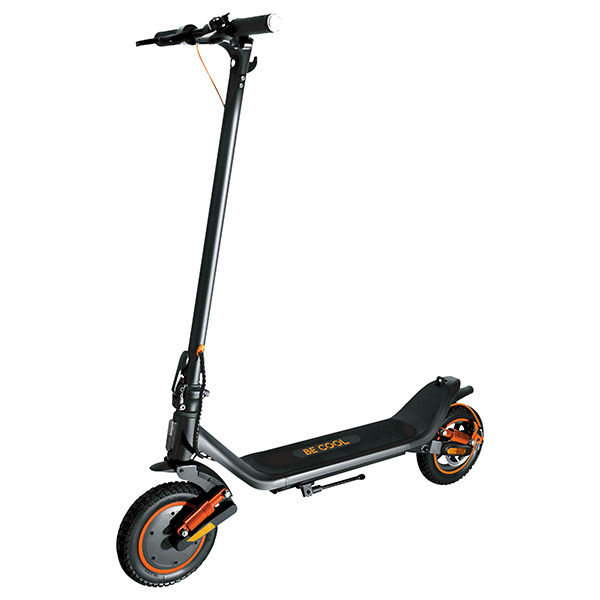

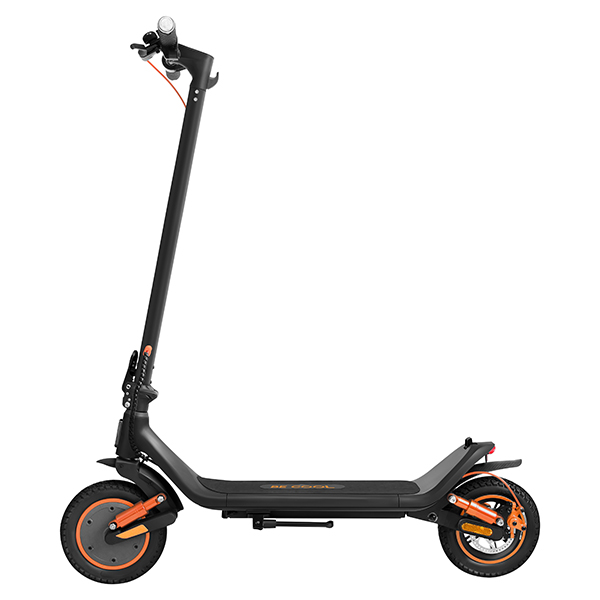

NX4-CORE e-scooter

SKU: NX4CORE

High Line

Weatherproof (IPX7) - 10Ah/36V Li-Ion battery - 10" Honeycomb tyres - 500 watt motor - 25-30 km range - up to 25 km/h - up to 120 kg - electronic front brake / rear disc brake

Description

NX4-CORE - your powerful companion for urban journeys

With an impressive motor output of 500 watts (brushless motor), the NX4-CORE sets new standards for electric mobility. Experience maximum freedom with a range of up to 30 km* thanks to the powerful 10 Ah 36 V battery with 360 Wh. This scooter not only offers powerful performance, but also outstanding safety.

The high-quality braking system ensures reliable control: a disc brake on the rear wheel and an electric brake at the front guarantee precise braking in any situation. With four adjustable speed levels, you can customise the ride to suit your needs. The 10-inch Honeycomb tyres ensure a smooth ride, while the maximum speed of 25 km/h allows you to get around town in comfort.

For maximum safety, the NX4-CORE has an LED front light, LED rear light, brake light and indicators. The front and rear suspension guarantees a comfortable ride, even on uneven terrain with gradients of up to 10%.

Thanks to energy recovery, the battery power is utilised efficiently. The clear LCD display shows speed, battery status and other important information. An integrated bell ensures that you can be heard at all times, and the practical app enables intuitive control and monitoring of your scooter.

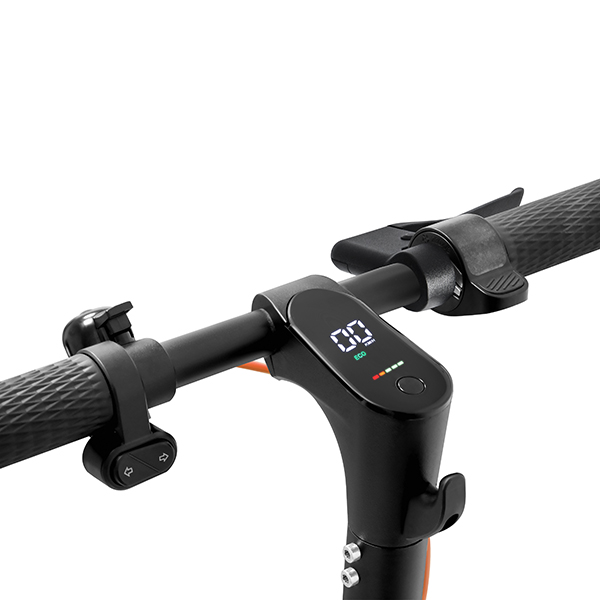

Bright display and headlight at any time of day

The bright LCD display shows information about the battery status and speed. All functions can be easily adjusted using the button control - from the speed level to the LED light.

Safety and comfort

The NX4-CORE is weatherproof and offers protection class IPX4. With a maximum load capacity of 120 kg, front and rear suspension and 10-inch Honeycomb tyres.

BE COOL auf Facebook

Technical Data

Specifications:

  • Motor power: 500 watt brushless motor
  • Maximum range: 30 km*
  • Battery type: 10 Ah, 36 V
  • Watt hours: 360 Wh
  • Rear disc brake, electric front brake
  • 4 speed levels
  • 10 inch honeycomb tyres
  • Maximum speed: 25 km/h
  • LED front light, LED rear light, brake light, indicators
  • Front and rear suspension
  • Energy recovery
  • Gradient: 10%
  • LCD display
  • Bell
  • app
  • Maximum load capacity: 120 kg
  • Weatherproof
  • Protection class: IPX5 (electrical components: IPX7)
  • Charging time: 7-8 hours
  • Charger: Input AC 100-240V~50-60Hz / Output DC 42/1.5A

Dimensions:

  • Product (L×W×H): 1140×490×1250 mm
  • Product folded (L×W×H): 1140×490×520 mm
  • Packaging (L×W×H): 1150×180×550 mm
  • Net/gross weight: 18 kg / 23 kg

Test variables for the range:

Person: 70 kg, weather: dry, 25 °C and no wind, continuous speed of 15 km/h, track condition: flat, smooth tarmac

Datasheets

Hi-res pictures

download all (zip)

User manuals

download all (zip)

Conformity

download all (zip)
Technical changes, errors and colour variations excepted. Country of origin, unless otherwise stated: China
