Stackable wind machine with 90cm rotor blade

Description

The 90 cm wind machine ensures effective air circulation in large rooms, machinery or warehouses. Thanks to its special design, several devices can be safely stacked on top of each other, which means that the air flow can be significantly increased if required. At the same time, the integrated castors enable easy mobility so that the device can be positioned flexibly at different locations.

The powerful solid copper motor drives three robust aluminium blades and offers a variable speed of 500 to 1100 rpm. This allows the air speed to be optimally adapted to the respective requirements. With a maximum air flow of 21,060 m³/h and an air speed of up to 10.2 m/s, the wind machine reliably provides noticeable freshness - even in particularly large or heavily frequented areas.

A sturdy spider grille protects against direct contact with the rotating blades and guarantees safe operation. Despite its power, the device operates comparatively quietly with a noise level of just 78 dB.

Technical Data

Technical specifications:

• Voltage: 220-240 V ~ 50 Hz
• Power: 1000 W
• 2 speed settings
• rotary switch
• Motor: 140×64 mm solid copper
• Speed: max. 1100 rpm, variable
• with 3 aluminium blades
• with spider web protective grille
• Air flow: max. 21,060 m³/h
• Air speed: 10.2 m/s
• Noise level: 78 dB
• Connection: Schuko plug, 5 m cable
• Special features: stackable, castors for easy mobility

Dimensions:

• Product (W×H×D): 1070×1280×600 mm
• Packaging (W×H×D): 1070×1285×600 mm
• Net/gross weight: 67.76 kg / 71.3 kg

Datasheets

• Datasheet (german)
• Datasheet

Hi-res pictures

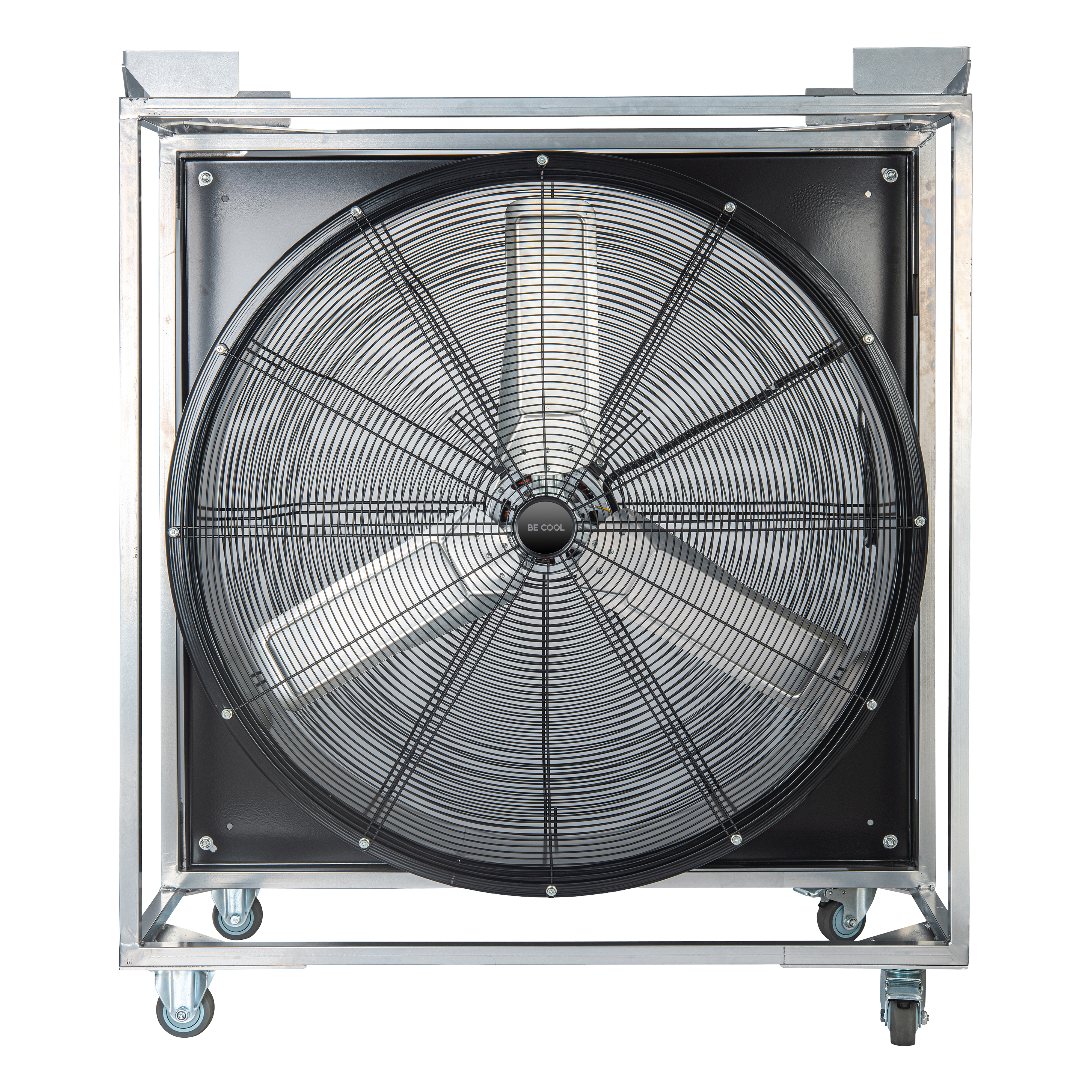

• Front view

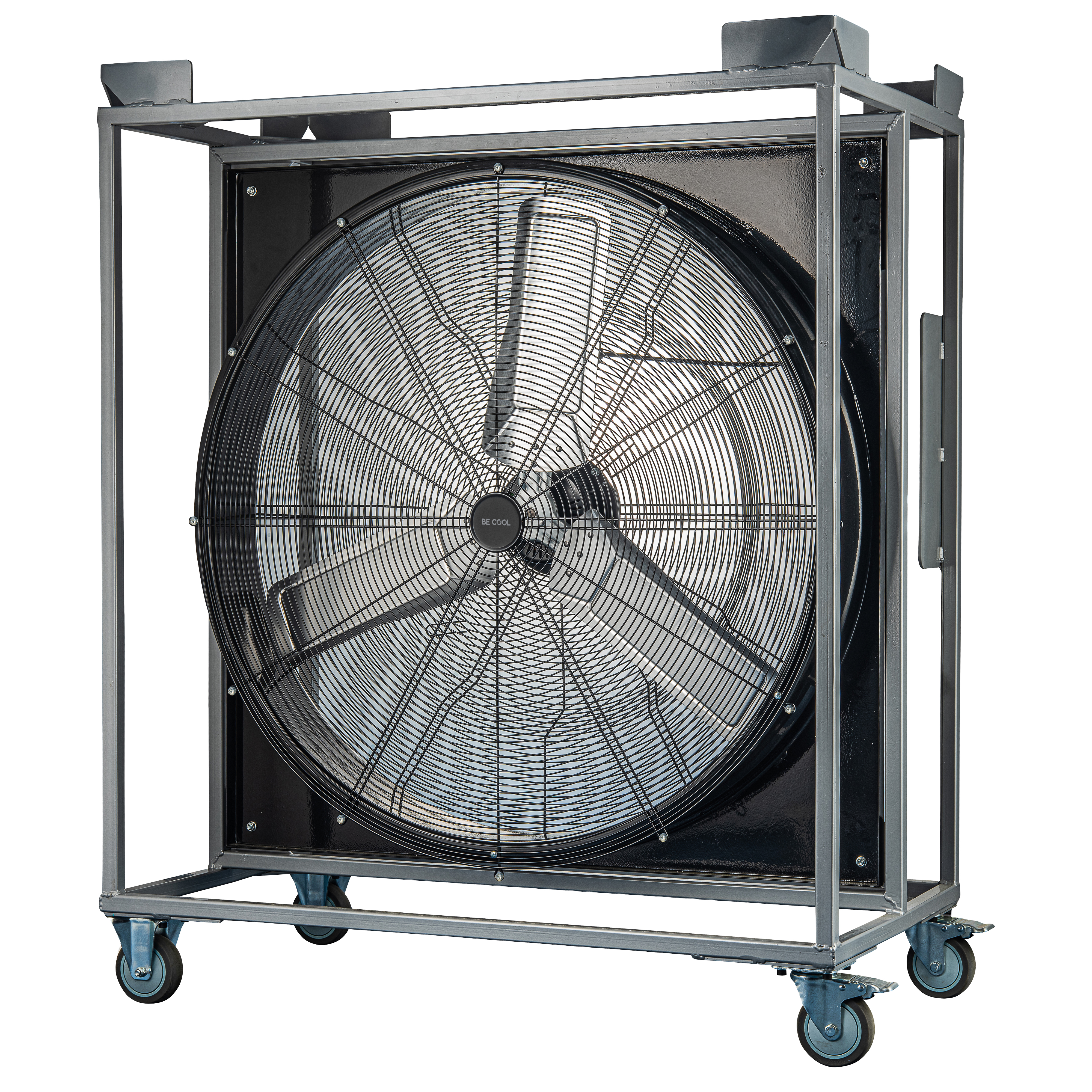

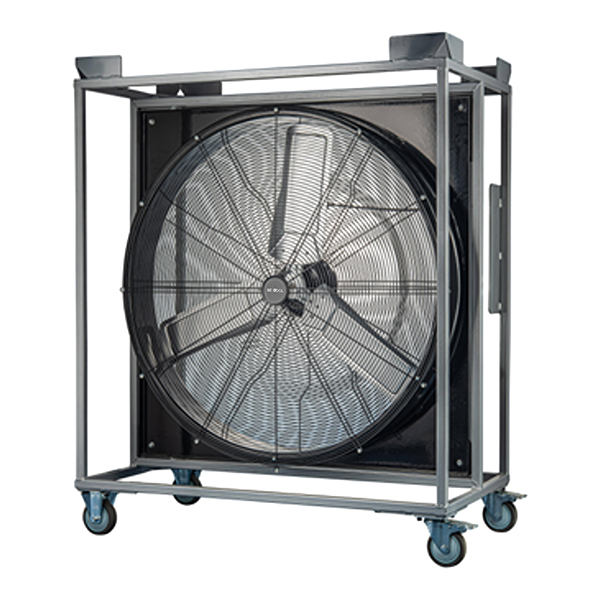

• Oblique view

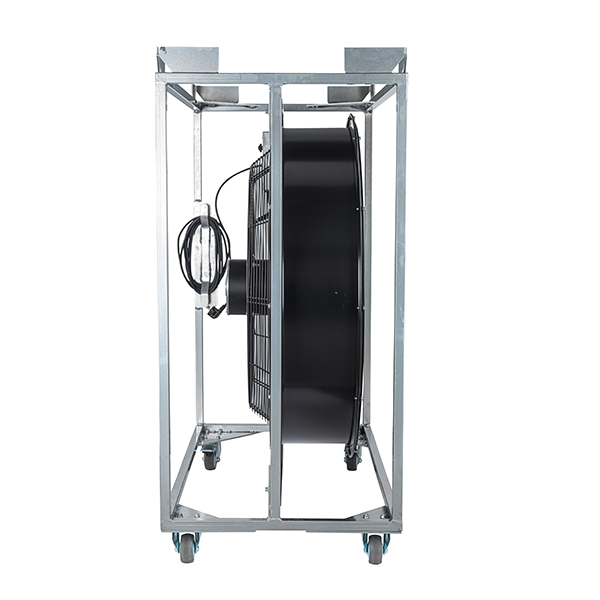

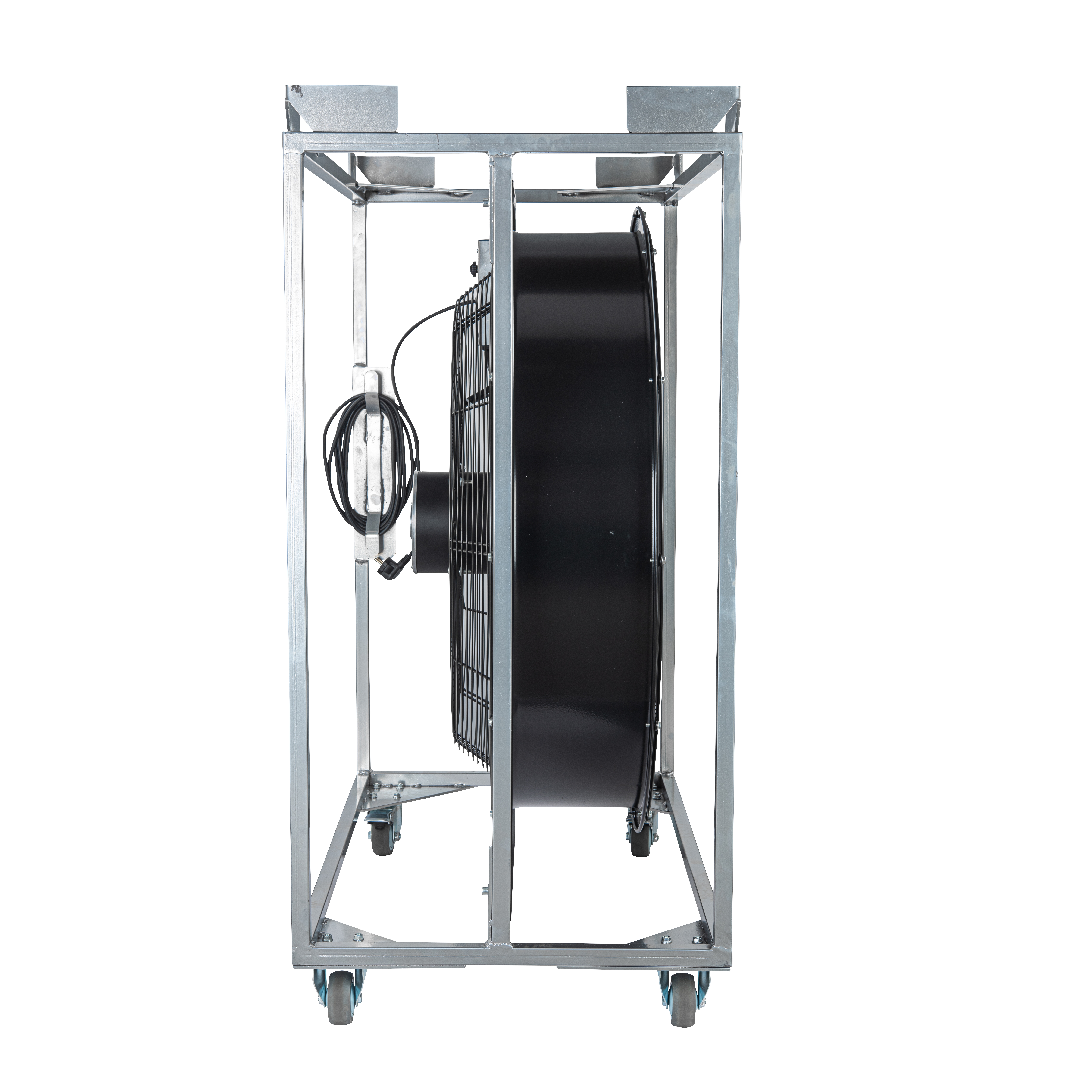

• Side view

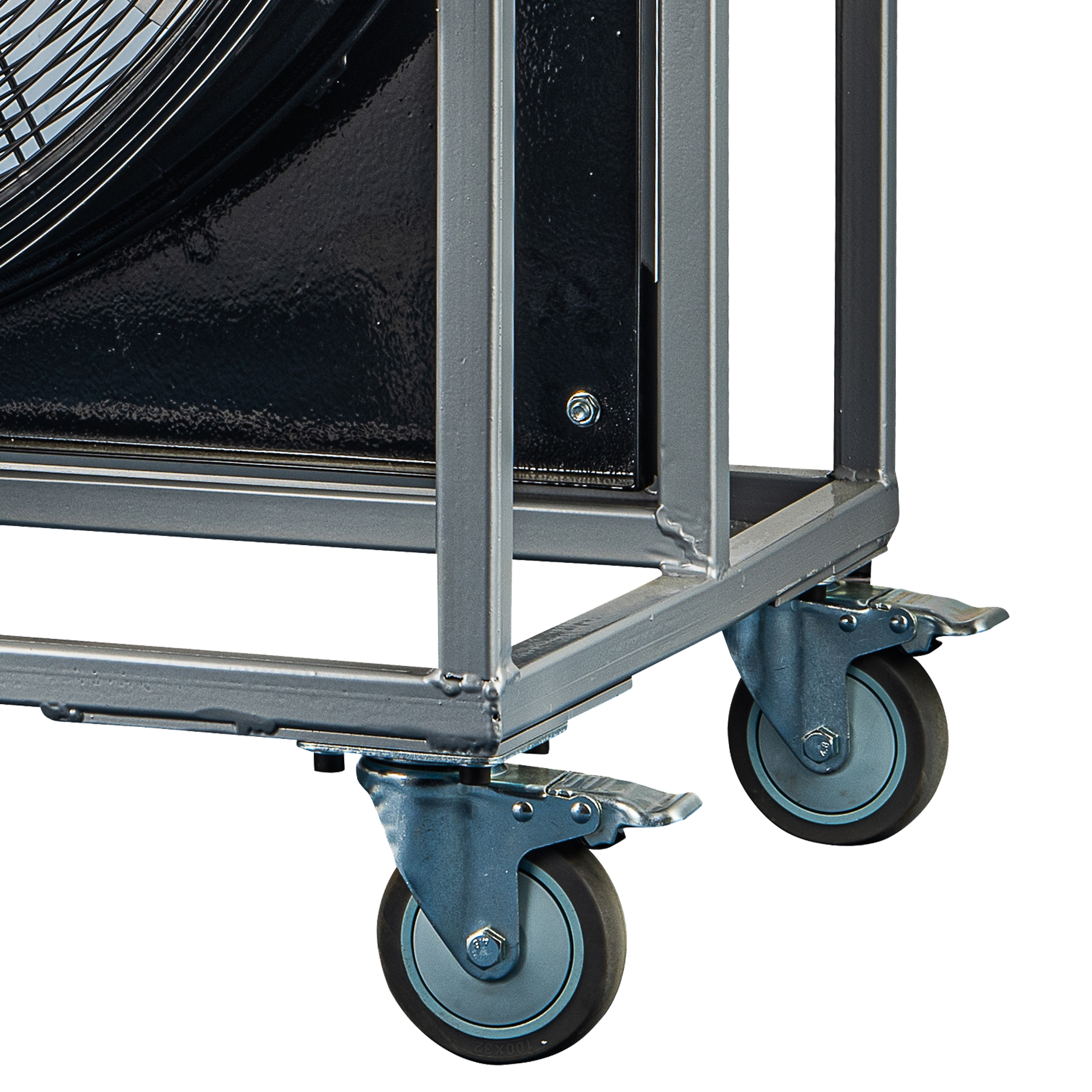

• Detailed view of castors

User manuals

• 7 languages
• 12 languages

Conformity

• Declaration of Conformity
