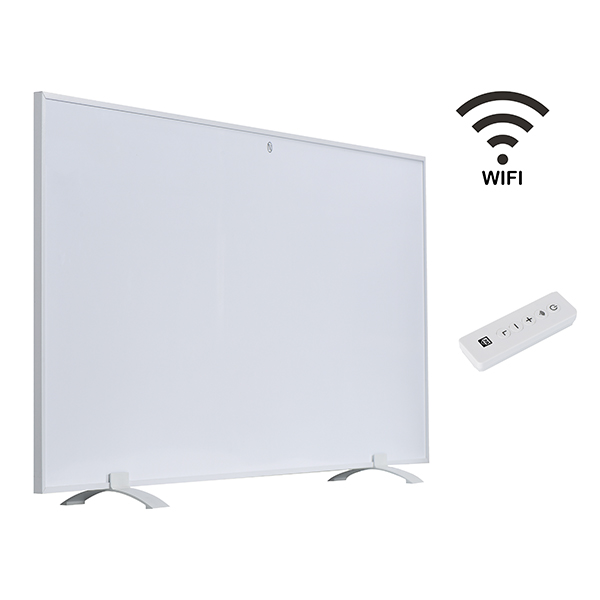

Infrared heating panel with WIFI 350W

Description

The SHXA series is a framed infrared heating panel with a built-in temperature controller. The heating panel features a simple and modern frame design and, together with its white carbon-crystal surface, complements all types of interior décor.

The panel features a built-in control box on the rear of the control panel, allowing you to adjust the temperature in various ways. In manual mode, you can adjust the temperature setting and operate the 24-hour timer, whilst you can use an app to configure complex heating schedules.

The infrared heating panel emits heat as infrared radiation into the surrounding area and onto surfaces within the room. With an IP rating of IP44, it can also be used in bathrooms.

The panel can also be controlled via Wi-Fi using the mobile app, Alexa and Google Home. The SHX A Wi-Fi model is based on the Tuya system and works with the ‘Tuya Smart’ app.

Technical Data

Specifications:

• Modern white frame design
• LC display and simple manual controls
• 24-hour timer
• Cloud timer
• Thermostat
• Window detection
• Heating element: Nano carbon crystal with PET surface
• Surface temperature: 85–95°C
• Insulation material: Glass fibre
• Steel reflective coating
• Overheating protection: Yes
• Mains voltage: 220–240 V AC, 50 Hz
• Cable length: 1.80 m
• Protection class: IP44
• Colour: white

Dimensions:

• Product (W×H×D): 600×500×50 mm
• Packaging (W×H×D): 710×610×68 mm
• Net/Gross weight: 2.5 kg / 3.5 kg
